Aerospace specialty fasteners: blind rivets and bolts for one-side access, and pin-and-collar, lockbolt and solid-rivet families for joints you can reach from both sides, plus attachment hardware (nutplates, threaded inserts, blind rivet nuts, bonded fasteners). Every family with the specs, install tooling, sourcing, and citations behind each one; the selector recommends a family only where a cited rule fits. Not sure which fits? Use the selector → · Compare side by side →

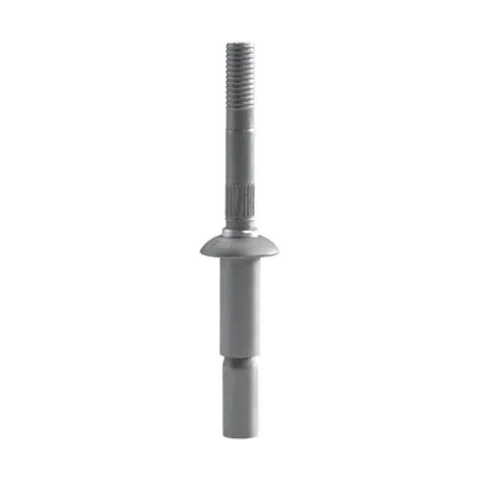

Standard blind rivet (NAS1398/NAS1399 wiredraw)
generic-NAS · Blind rivet
NAS1398 / NAS1399 wiredraw locked-spindle blind rivet: for metal; not for a composite blind side.
NAS1398 (universal head) / NAS1399 (countersunk head) · e.g. NAS1398B = CR2263

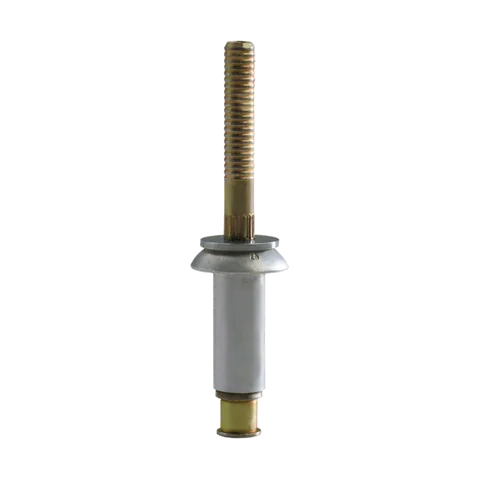

CherryMAX
Cherry · Blind rivet
Cherry's bulbed blind rivet: 50 / 75 KSI shear, universal, 100° flush and NAS 1097 heads.
CR3xxx · e.g. CR3242-6-04

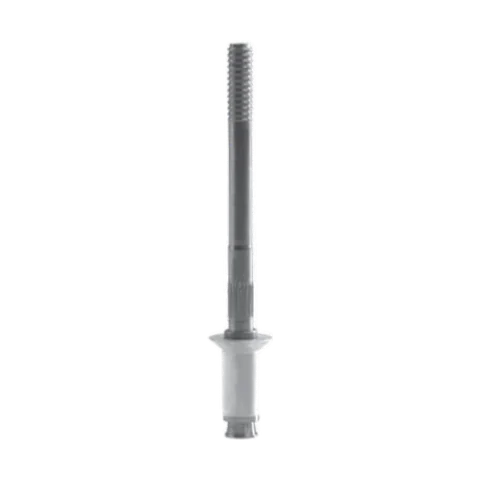

CherryLOCK
Cherry · Blind rivet
Locked-spindle blind rivet, bulbed (NAS1738/1739) or wiredraw (NAS1398/1399); hydroshift riveters.
CR2xxx · e.g. CR2249-5-04 (= NAS1738B)

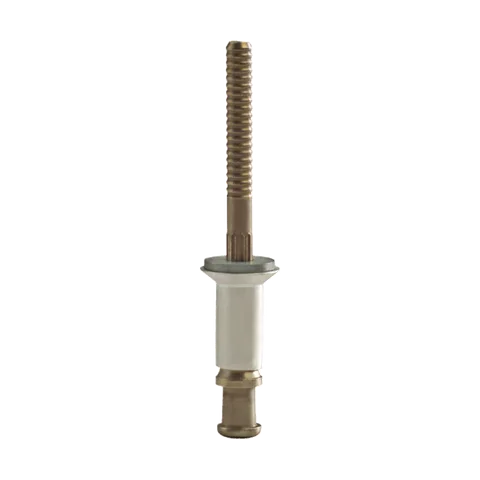

Cherry SST
Cherry · Blind rivet
Cherry SST blind rivet: the pull clamps the sheets together before the collar locks (CA-1037).
CR6xxx · e.g. CR6253-6-05

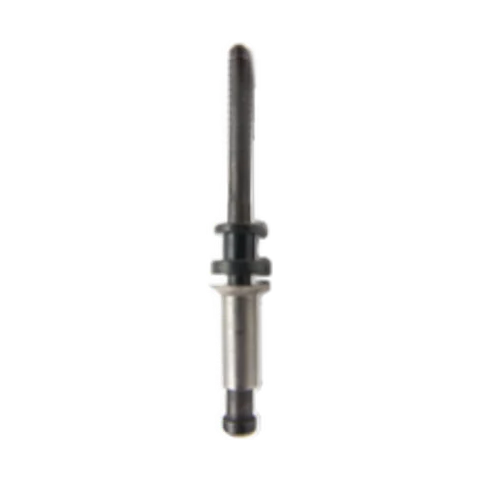

Cherry 1900 bulbing blind rivet
Cherry · Blind rivet
NAS1919/NAS1921 bulbing blind rivet whose large footprint Cherry rates suitable for composite.
CR1919 (protruding head) / CR1921 (flush head) · NAS1919 / NAS1921 · e.g. CR1919M04S05WU

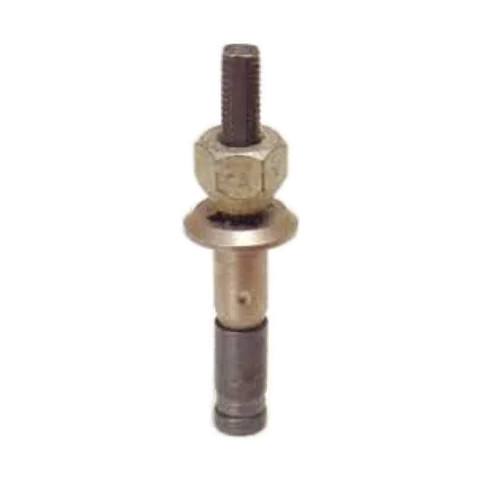

Composi-Lok II
Monogram · Blind bolt
Monogram Composi-Lok II: "high strength blind bolt for composite and metallic materials" (catalog).
MBF2110 · MBF2111 · MBF2112 · MBF2113 · MBF2120 · MBF2121 · e.g. MBF2112-6-500

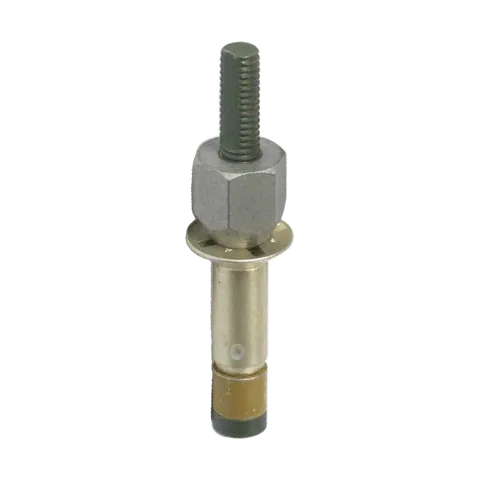

Visu-Lok
Monogram · Hex-drive blind bolt
Visu-Lok II: "high strength blind bolt for use in metallic structures" (Monogram catalog).
PLT5 series · e.g. PLT5170-06-05 (100° flush head, titanium) / PLT5270 (hex head, titanium)

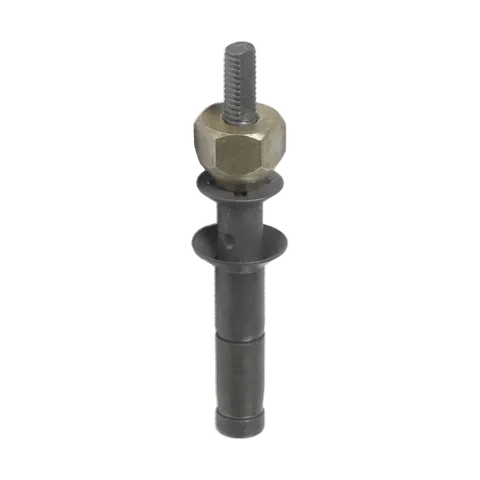

Radial-Lok
Monogram · Blind bolt
Hole-filling blind bolt: radial expansion fills a clearance-fit hole from one side.
MRL3210 (low profile protruding head) / MRL3212 (100° flush tension head) · e.g. MRL3212-06-500

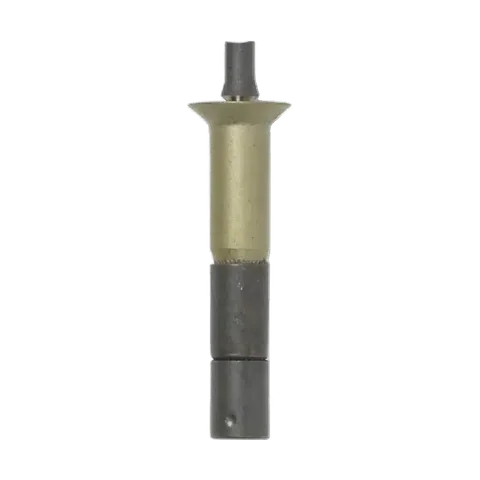

OSI-Bolt
Monogram · Blind bolt
Blind bolt designed as a direct replacement for solid-shank pin-and-collar systems.
BG2032 / BG2034 / BG2035 series · Ti-OSI BG2082 · e.g. BG2082-06-05
Jo-Bolt
generic-NAS · Hex-drive blind bolt
Jo-Bolt (NAS1669/NAS1670): three-piece threaded blind bolt; Visu-Lok II is Monogram's listed replacement.
NAS1669 (alloy steel protruding head) / NAS1670 (alloy steel flush head) (Visu-Lok II brochure p.6 cross-reference)

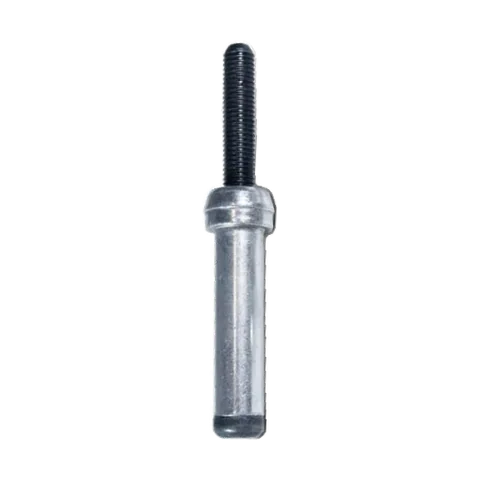

Huck BOM (industrial)
Howmet/Huck · Blind bolt
Howmet's industrial steel blind bolt (BOM); commercial spec, not an aerospace part.
BOM-R[dia]-[grip] · e.g. BOM-R8-6

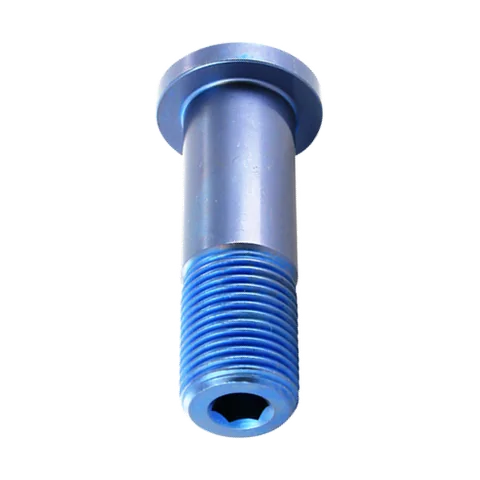

Hi-Lok
LISI · Pin and collar
Hi-Lok pin and collar (Hi-Shear): the collar wrenching device shears off at installation.
HL10 / HL18 protruding shear head · HL11 / HL19 100° flush shear head · typical collars HL70, HL79, HL82, HL94, HL97

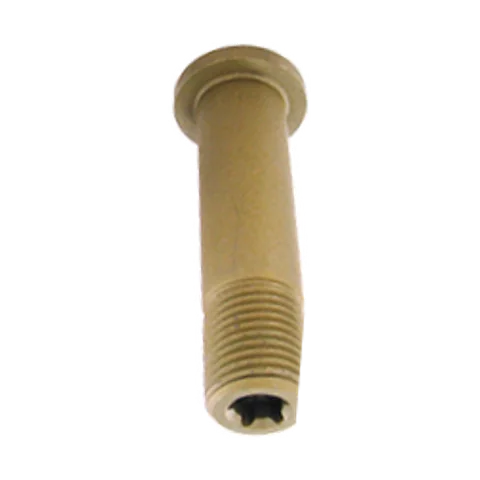

Hi-Lite
LISI · Pin and collar
Hi-Shear's titanium pin-and-collar system (HST10), for two-side access.
HST10 Hi-Lite ST pin (Hi-Shear) · e.g. HST10-8-8 / HST1079-8-8
MS20470 solid rivet
generic-NAS · Solid rivet
MS20470 / MS20426 solid rivet: universal and 100-degree countersunk heads, driven from both sides.
MS20470 / AN470 · e.g. MS20470AD4-5

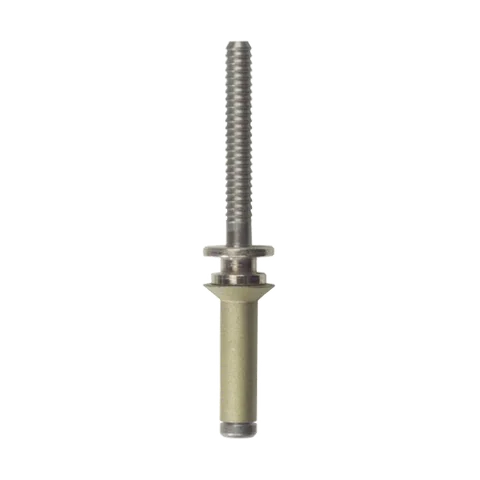

Cherry Maxibolt
Cherry · Blind bolt
Cherry MAXIBOLT pull-type blind bolt: MS90353/MS90354 and MS21140/MS21141 equivalents.
CR7310 / CR7311 alloy steel (MS90353 / MS90354) · CR7620 / CR7621 A-286 (MS21140 / MS21141) · e.g. CR7310S-06-04 = MS90353S0604

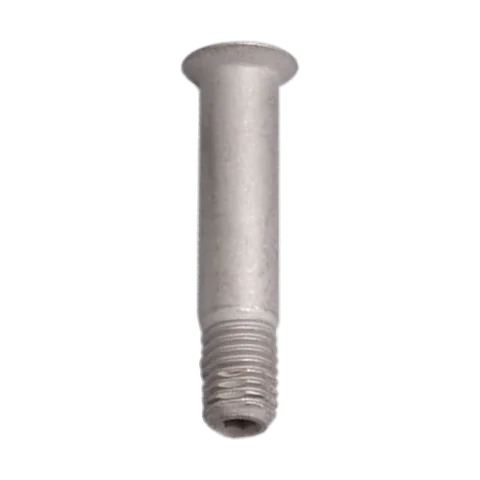

Eddie-Bolt 2
Howmet/Huck · Pin and collar
Fluted pin and lobed nut that lock mechanically at clamp load, with nothing broken off.
EL… pin / EN… nut · e.g. EL1205NN8-6Y

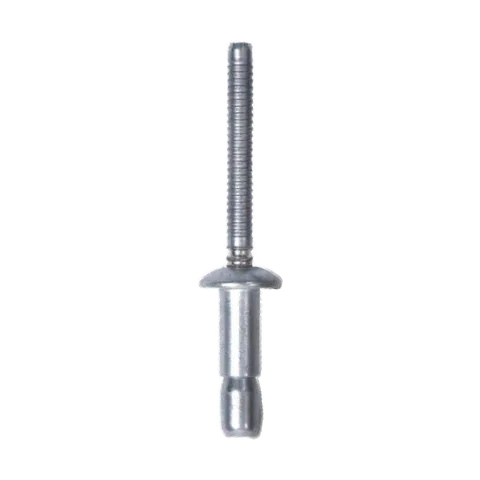

Huck Magna-Lok (industrial)
Howmet/Huck · Blind rivet
Howmet's industrial Magna-Lok blind rivet: hole filling, mechanically locked pin.
MGL[head]-[mat][dia]-[grip] · e.g. MGLP-R6-4

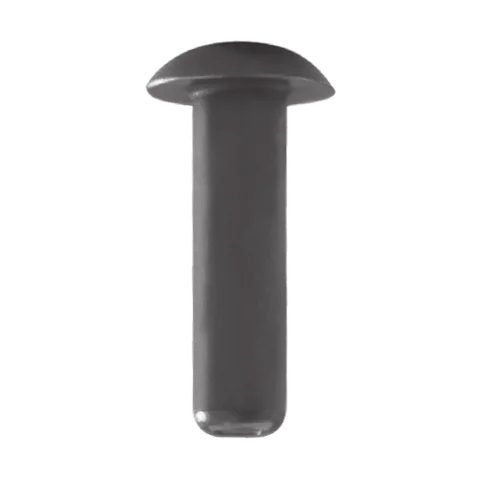

Cherry E-Z Buck
Cherry · Solid rivet
Cherry E-Z Buck titanium/columbium solid rivet: 33% lighter than Monel (CA-1032).
CSR902/903/904 · e.g. CSR902B-6E-5

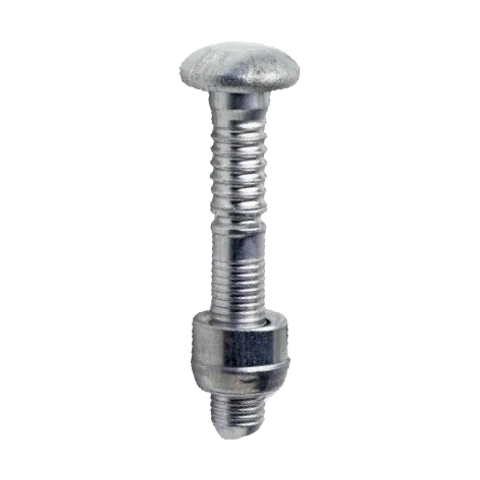

Avdel Avdelok (industrial)
Avdel · Lockbolt (swaged collar)
Avdel's commercial swaged lockbolt (Avdelok 2621/2622/2624): two-side install.
2621 brazier head / 2622 90° countersunk / 2624 truss head (steel) · 2691 stainless · 2801 aluminium

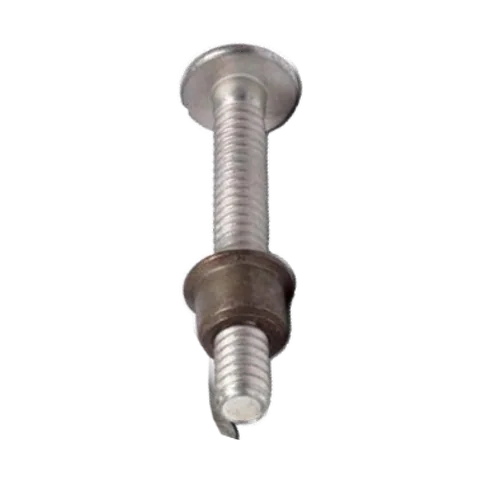

Huck Magna-Grip (industrial)
Howmet/Huck · Lockbolt (swaged collar)
Howmet's industrial Magna-Grip lockbolt: wide grip range, published installed clamp.
MGP[head]-[mat][dia]-[grip] + collar MGC… · e.g. MGPB-R8-10G

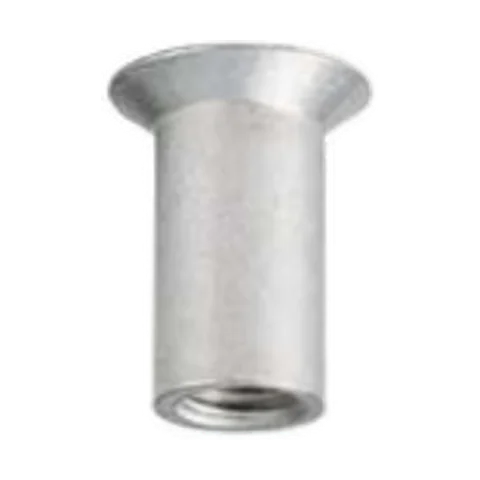

Blind rivet nut (MS27130, now NAS1329 / NAS1330)
generic-NAS · Blind rivet nut
Blind-installed internally threaded rivet: a screw anchor in thin sheet from one side (MS27130, now NAS1329 / NAS1330).
MS27130-[material][dash][K] · e.g. MS27130-A26K · superseded by NAS1329 (flat head) / NAS1330 (countersunk head)

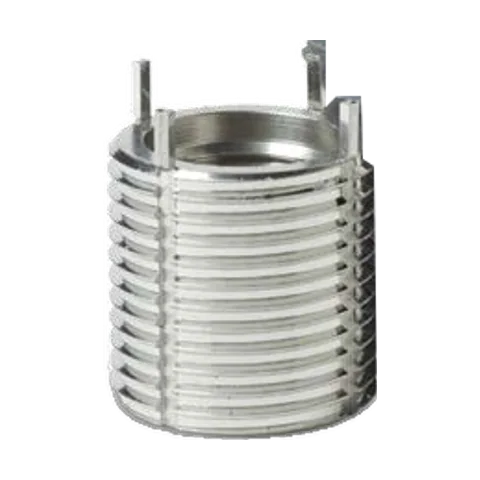

Threaded inserts (key-locked MS51830 / Keenserts, helical coil MS21209)
generic-NAS · Threaded insert
Durable threads in a tapped hole, installed from one side: key-locked (MS51830, Keensert) or helical coil (MS21209).
MS51830[-|CA|A][dash][L|LM] · e.g. MS51830CA106L (key-locked) · MS21209C0415 (helical coil, screw locking)

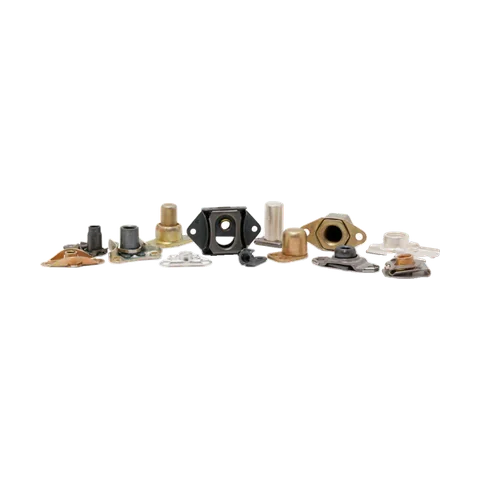

Self-locking nutplates (MS21047, MS21059, MS21069, MS21078; rivetless ForceTec)
generic-NAS · Nutplate
The captive nut behind a panel: MS/NASM self-locking plate nuts, riveted, plus the rivetless ForceTec.
MS21047[-|L][dash][K] · e.g. MS21047L4K (.250-28, dry film lubricant, countersunk or dimpled rivet holes) · NASM21047 same PIN

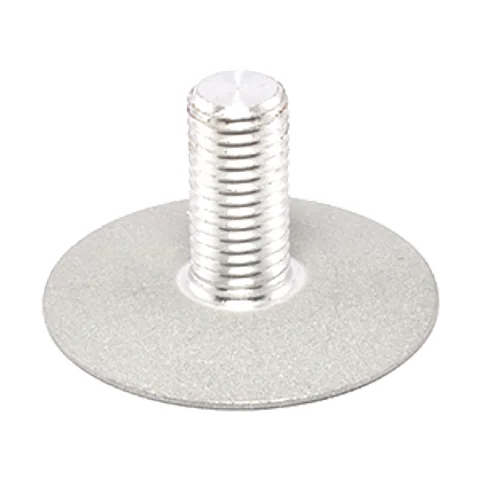

Click Bond adhesive-bonded studs, standoffs and nutplates
Click Bond · Adhesive-bonded fastener
Bond a stud, standoff or nutplate to the surface: no rivet holes, and no hole at all for studs and standoffs.
CB[basic][baseplate][thread][stud material][length]… · e.g. CB4001 G 3 CRA 12 H P 750 (Product Guide p.10) · nutplates e.g. CB6009 CR 3 CRS 1 P NL (p.4)

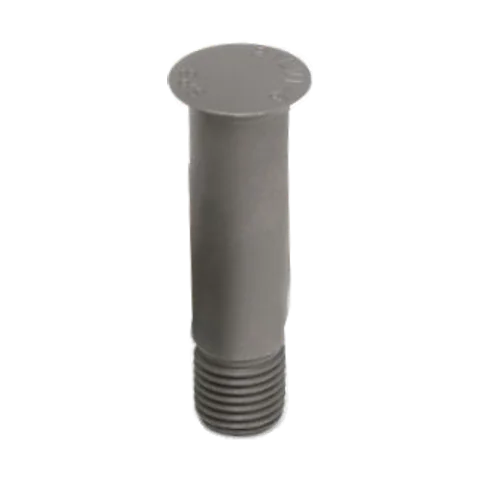

Taper-Lok tapered-shank interference-fit bolts (NAS1724 / NAS1728)
PB Fasteners · Interference-fit tapered bolt
Tapered shank in a reamed tapered hole: controlled interference fit for fatigue-critical joints (NAS1724 flush, NAS1728 protruding).
NAS1724 (100° flush) / NAS1725 (flush, O/S) / NAS1728 (protruding) / NAS1729 (protruding, O/S) · numbering not published free
