3D library

Fasteners and tools in 3D

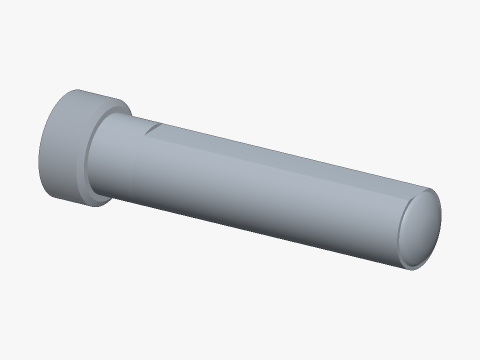

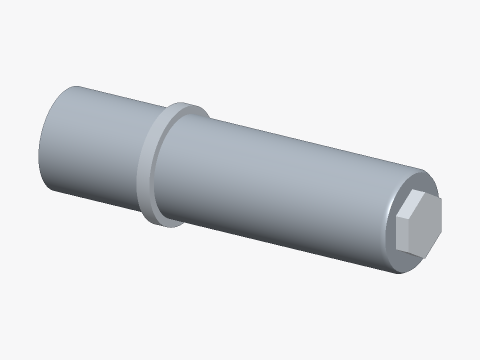

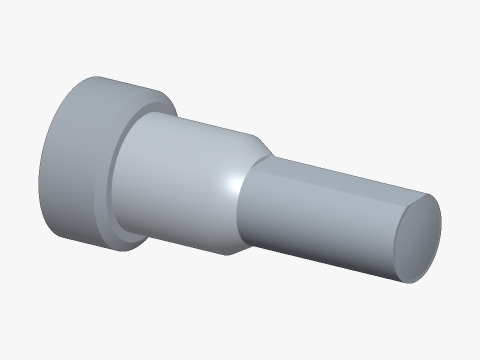

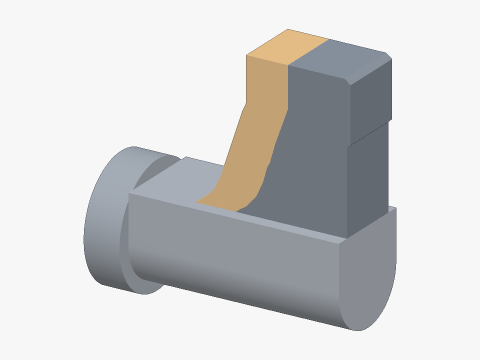

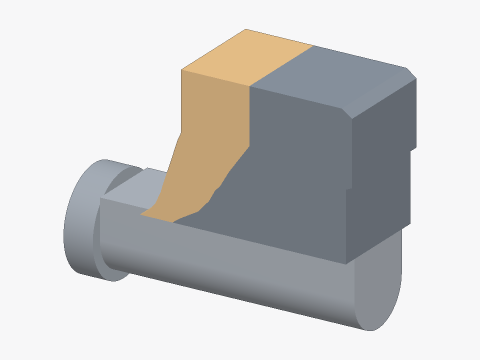

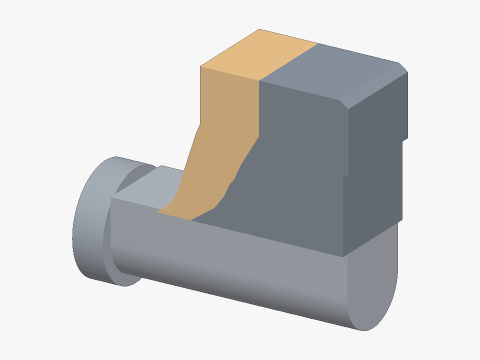

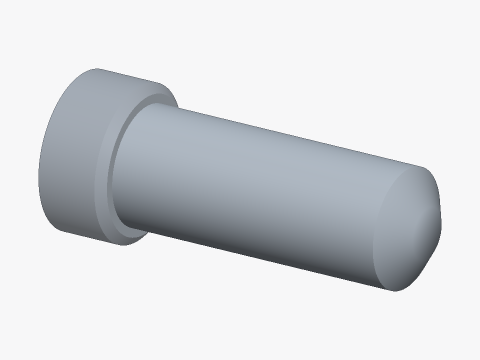

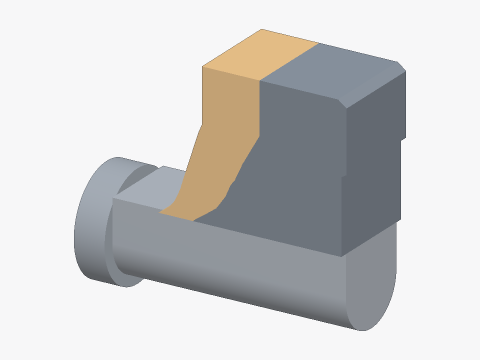

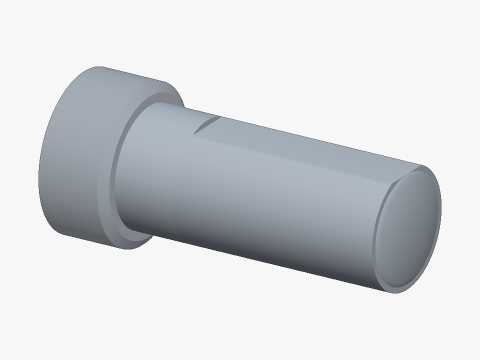

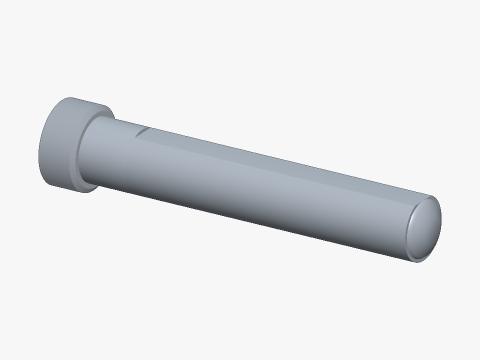

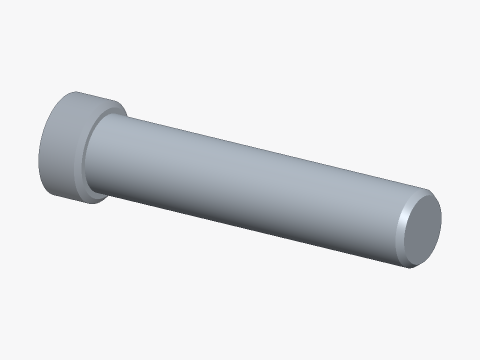

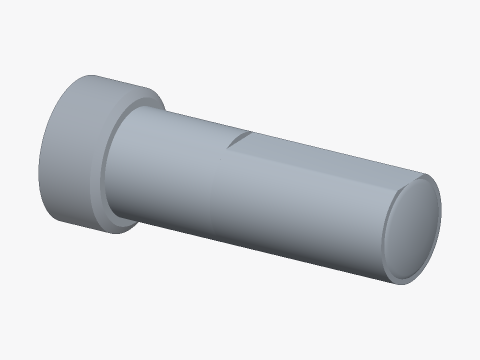

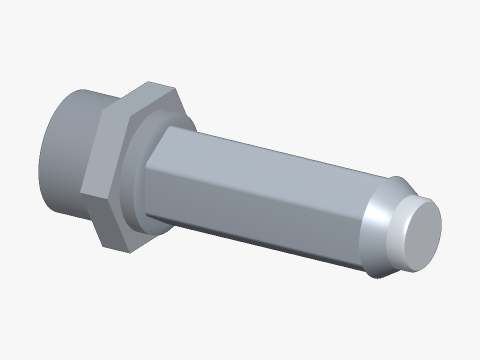

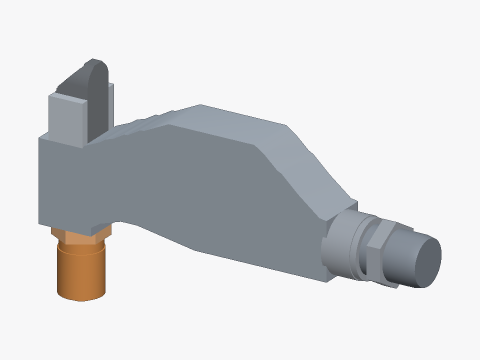

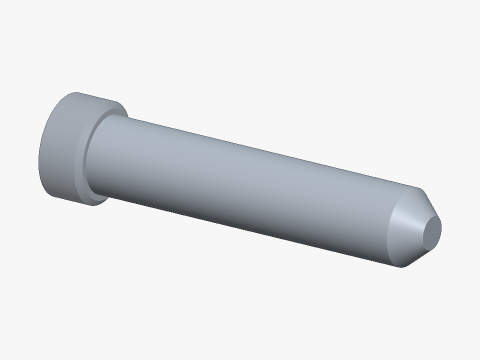

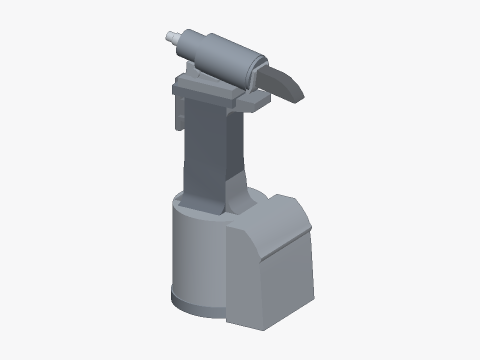

36 fasteners, one per head style, and 61 installation tool reference models, traced from manufacturer views and constrained by published dimensions. Open one to orbit it, or go to its page for STEP and STL.

36 shown

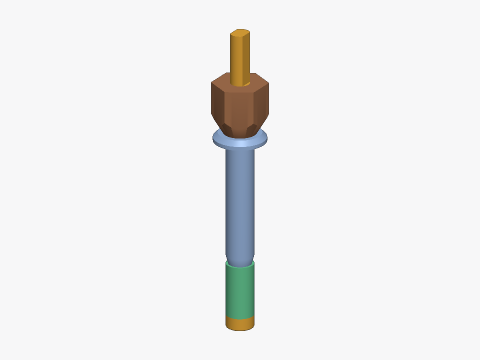

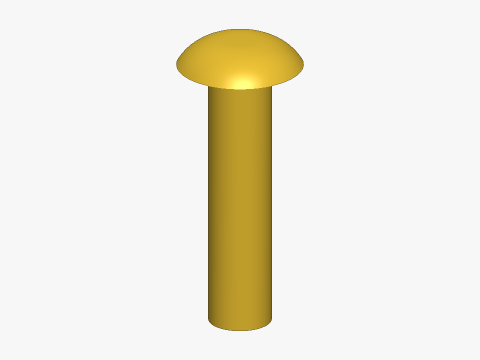

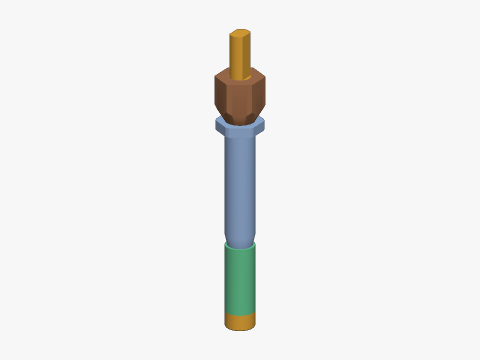

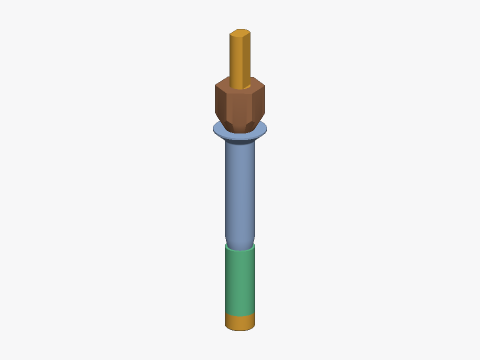

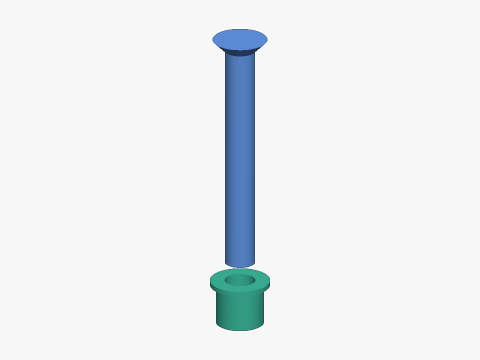

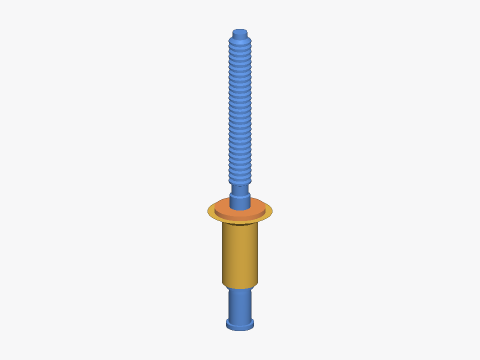

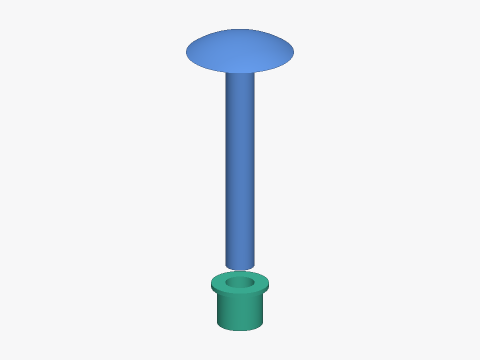

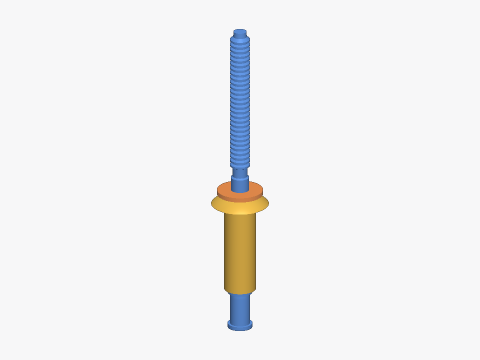

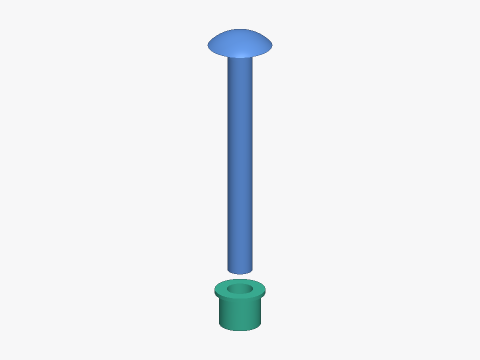

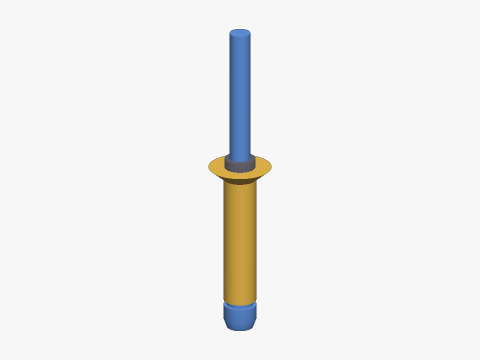

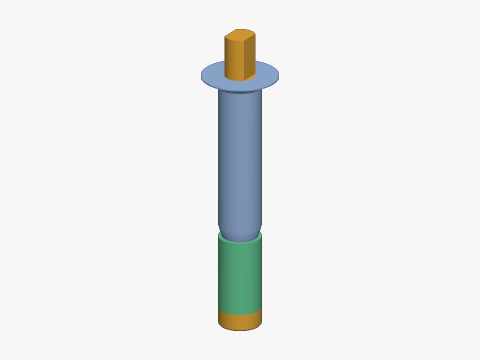

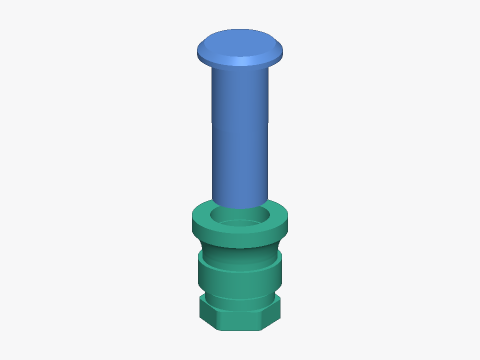

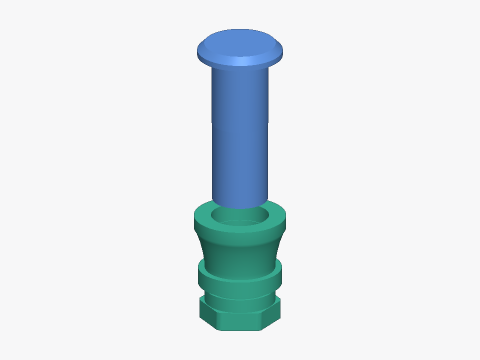

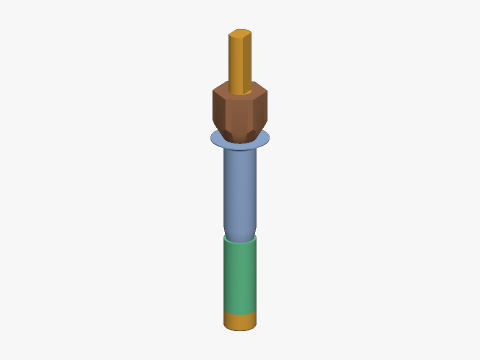

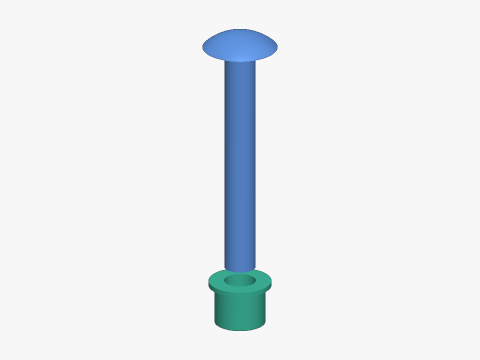

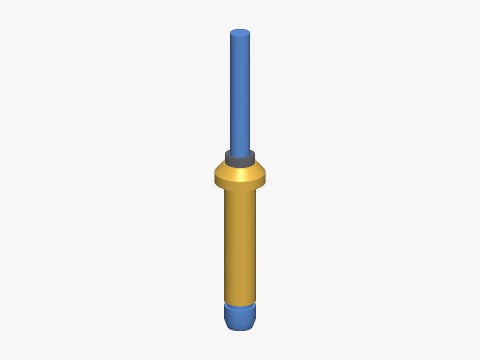

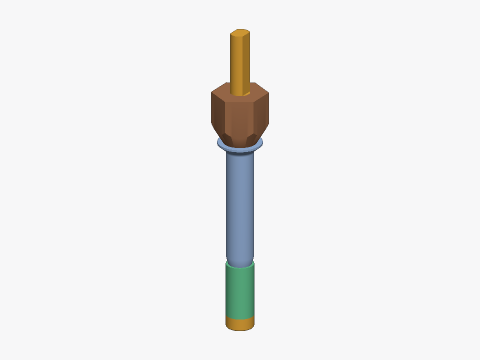

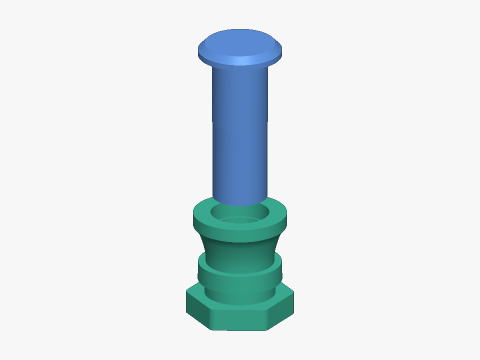

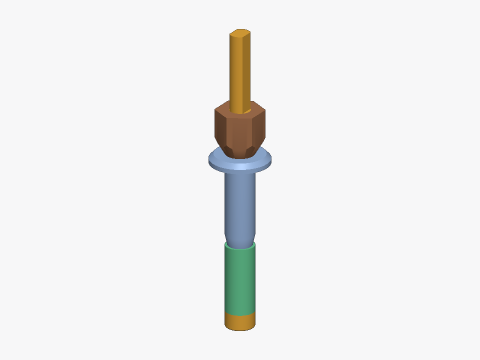

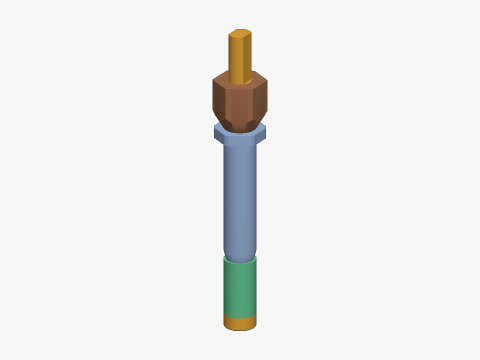

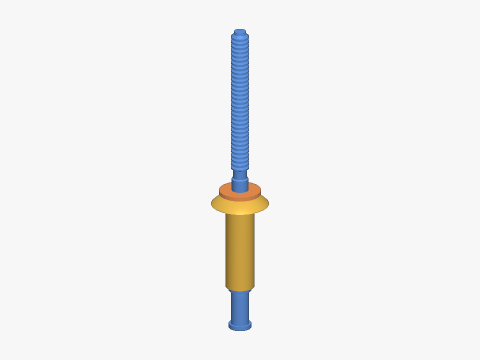

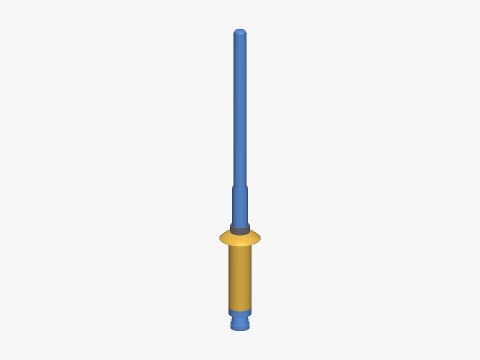

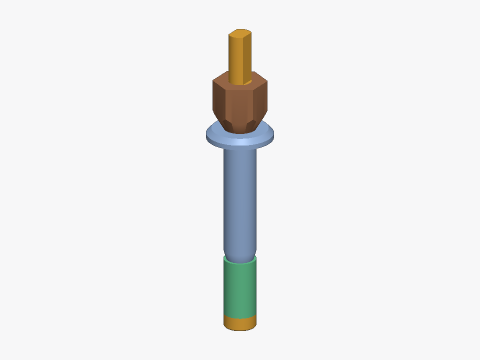

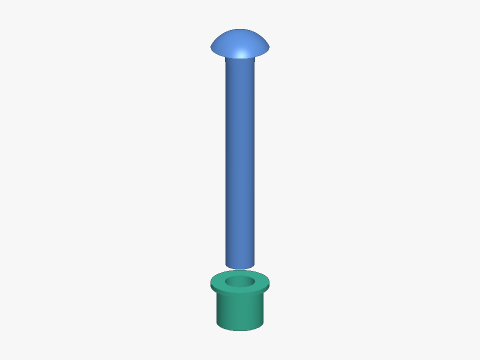

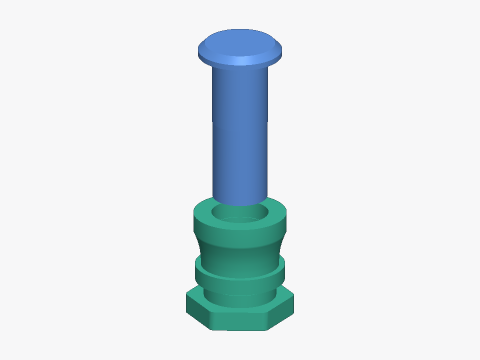

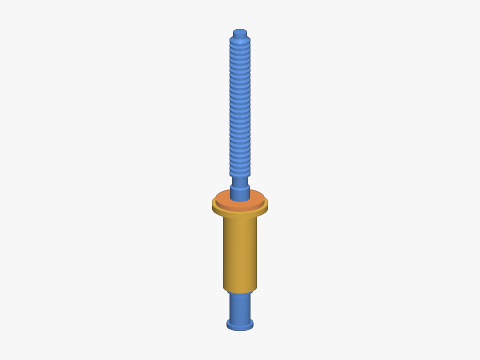

Fastener components, shown as supplied. Separate collars are shown off the pin.

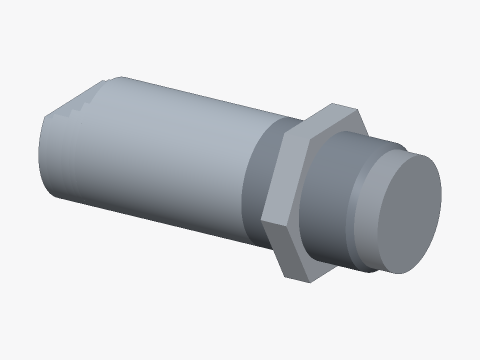

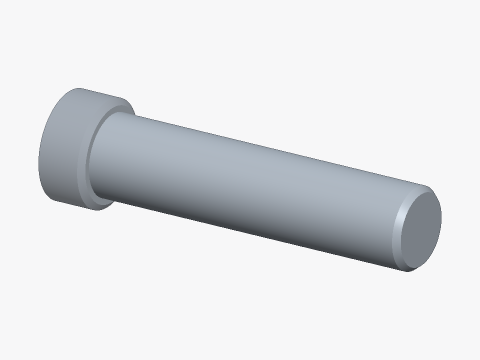

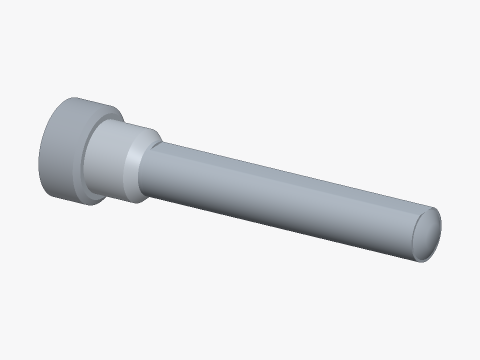

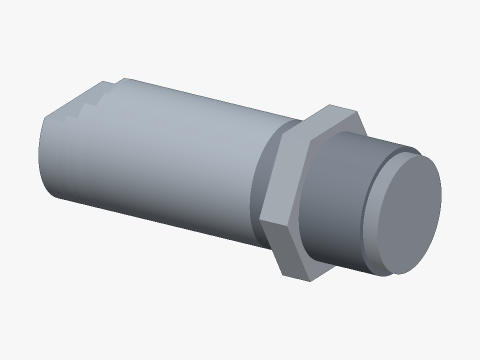

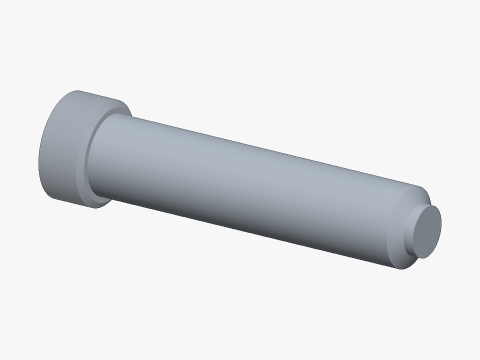

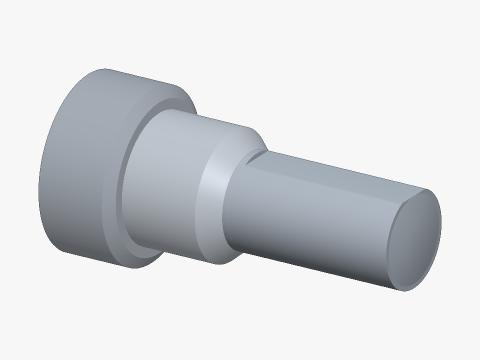

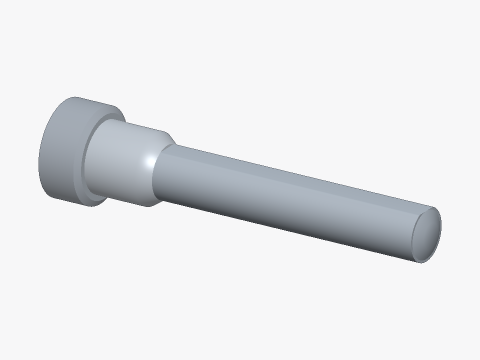

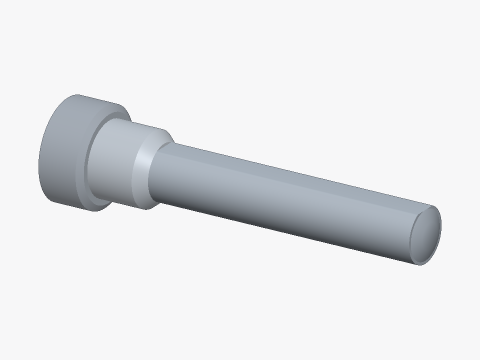

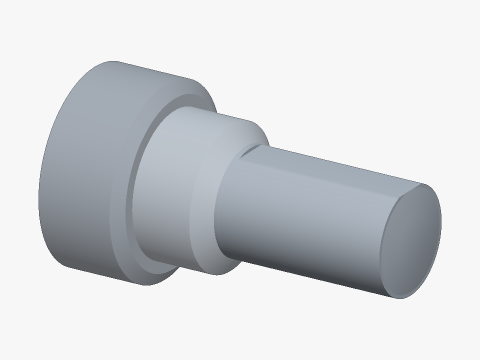

Sourced: every size is a printed dimension. Scaled: some features the document draws but does not dimension are scaled from its figure, and labelled so in the model. Tool models include inferred shapes and omitted details. They are not manufacturing models or guaranteed clearance boundaries.

Reference only: the controlling drawing, its process spec and the manufacturer's installation instructions govern. How to use these answers
